Window Sliding System Installation Scheme Window Accessory

WINDOW ACCESSORY SCHIEBE SYSTEM Lift & Slide Mechanism

WINDOW ACCESSORY SCHIEBE SISTEM SURME SISTEMLERI presents a lift & slide mechanism installation scheme for sliding systems. The set is shown as a complete hardware layout around a framed panel or sash, with each part positioned for assembly and installation reference.

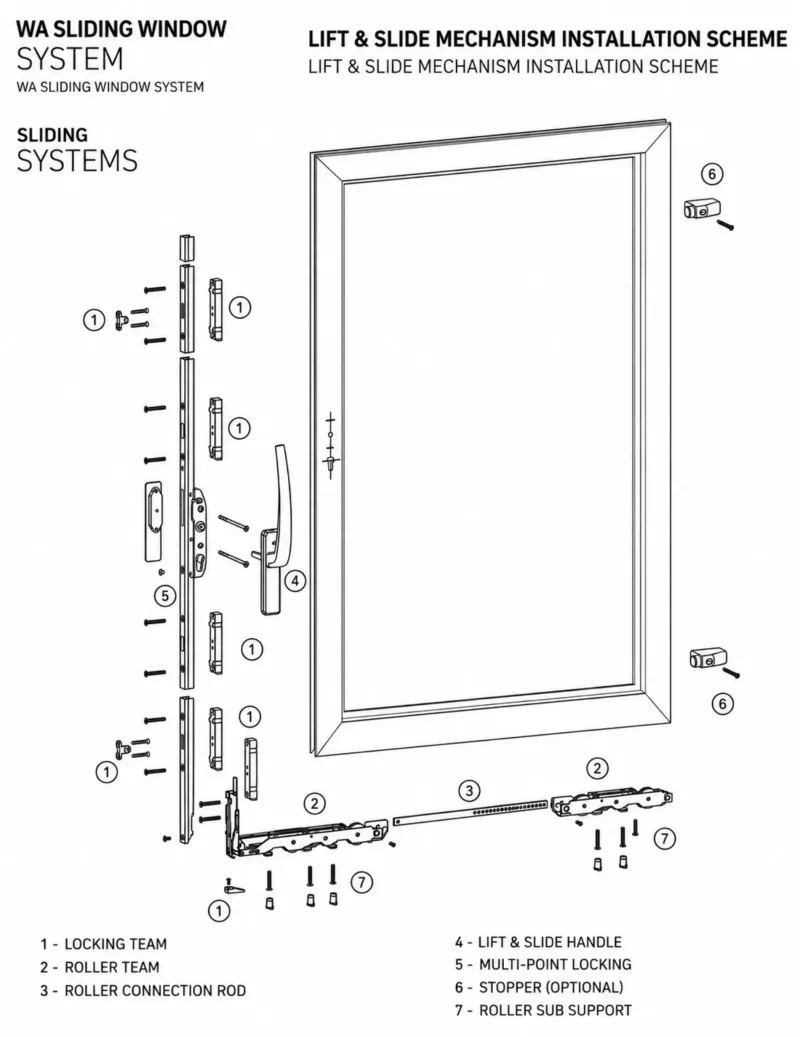

The visible component structure includes seven numbered elements: 1 locking team, 2 roller team, 3 roller connection rod, 4 lift & slide handle, 5 multi point locking, 6 stopper (optional), and 7 rollers sub support. This arrangement supports the lift & slide door and window mechanism used in sliding systems.

The layout identifies how the locking parts, rollers, handle, and support elements fit together within the mechanism set. The multi point locking and roller connection rod are shown as part of the main hardware assembly, while the stopper is marked as optional. The rollers sub support is included as a separate numbered part in the system.

• Brand: WINDOW ACCESSORY SCHIEBE SISTEM SLIDING SYSTEM
• Product family: Lift & slide mechanism installation scheme
• Application: Sliding door and window systems
• Shown as: Numbered hardware assembly with parts 1–7
• Includes: Lift & slide handle, multi point locking, roller assembly components

This mechanism set is presented as a practical installation layout for the main sliding hardware components used in a framed sash or panel system.
