PVC Window Profile TRIPLE GLAZING LINE 91

‹ ›

PVC Window Profile System TRIPLE GLAZING LINE 91

High-Performance 91 mm PVC Window Profile for Energy-Efficient Buildings

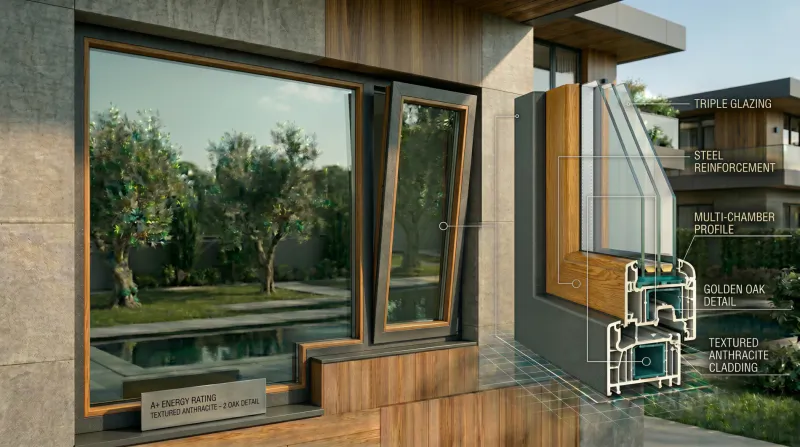

TRIPLE GLAZING LINE 91 is a high-performance PVC window profile system developed for low-energy houses, energy-saving renovation projects, high-rise buildings, business centers, residential buildings, balconies, and interior partition applications.

With its 91 mm profile depth, 7-chamber intelligent profile geometry, and triple gasket sealing system, TRIPLE GLAZING LINE 91 offers excellent thermal insulation, strong acoustic performance, high wind resistance, and long-lasting durability for modern PVC window and door systems.

Technical Profile Features

TRIPLE GLAZING LINE 91 is designed with a 3 mm wall thickness and meets A-Class profile standards. Its extra profile depth and advanced internal chamber structure improve static strength while increasing energy efficiency.

The 7-chamber profile geometry combines aesthetic design, functionality, and superior insulation performance in one advanced PVC window profile solution. This makes the system suitable for modern architectural projects as well as buildings requiring high thermal and acoustic performance.

Superior Thermal Insulation and Energy Saving

TRIPLE GLAZING LINE 91 provides excellent energy-saving performance with very low thermal transmittance values.

Profile thermal transmittance value: Uf = 1.1 W/m²K

Window thermal transmittance value: Uw = 0.97 W/m²K

With 44 mm triple insulating glass featuring a Ug value of 0.6 W/m²K, the system achieves outstanding thermal efficiency. Supported by an IFT Rosenheim test report, TRIPLE GLAZING LINE 91 is an ideal energy-efficient PVC window profile for low-energy buildings and projects with high insulation requirements.

It helps keep cold air outside in winter and heat outside in summer. Dust, humidity, external weather effects, and traffic noise are reduced, creating more comfortable and efficient living spaces.

Triple Gasket System for Maximum Sealing Performance

TRIPLE GLAZING LINE 91 features a triple gasket system that provides high resistance against air, water, wind, and driving rain. This advanced sealing structure increases energy savings and improves indoor comfort.

Especially in high-rise buildings and areas exposed to strong wind loads, the system delivers reliable performance. The integrated grid profile gives window façades additional strength in tower-type buildings, improving resistance against wind pressure and driving rain.

Enhanced Acoustic Insulation

With different acoustic glass applications, TRIPLE GLAZING LINE 91 can achieve sound insulation values of up to 44 dB. This makes it an excellent soundproof PVC window profile for city centers, busy traffic areas, office buildings, hotels, and residential projects exposed to external noise.

The advanced profile structure, gasket system, and suitable glazing combinations help reduce outside noise and create quieter, more peaceful indoor environments.

Wide Glazing and Panel Application Options

TRIPLE GLAZING LINE 91 offers glazing bead options suitable for 24 mm, 32 mm, and 44 mm glass, panel, and cladding applications.

Its structure is suitable for triple glazing PVC windows, helping reduce heat loss through large glass surfaces. This is a major advantage for modern buildings with large window openings and high energy-efficiency expectations.

Strong Static Performance

TRIPLE GLAZING LINE 91 is reinforced with steel profiles featuring a high moment of inertia. This provides excellent strength for large-size window and door applications.

To support sash load, reinforcement steel is used in the sash chamber where the hinges are fixed. This structure improves sash stability during long-term use and contributes to safe, reliable system performance.

Increased Security Performance

TRIPLE GLAZING LINE 91 is compatible with hardware solutions designed to increase burglary resistance. When used together with strong profile geometry, reinforced steel sections, and advanced locking systems, it provides a higher level of security.

This makes it suitable for homes, offices, ground-floor applications, and projects where security is an important requirement.

Wide Range of Lamination and Color Options

TRIPLE GLAZING LINE 91 offers a wide range of lamination options for different interior and exterior design concepts. Natural wood-effect finishes and aluminium-look surfaces allow the system to match various architectural styles.

The updated color range includes Anthracite Grey, Azul, Antique Oak, Rustic Oak, Golden Oak, Dark Oak, Walnut, and aluminium-effect finishes suitable for modern façades.

Special surface options such as Aluminium Brush Effect, Silber Brush Effect, Quartz Platinum, and Crown Platinum support a premium appearance in contemporary architectural designs.

Advanced TPV Gasket System

TRIPLE GLAZING LINE 91 is equipped with an advanced TPV gasket system developed to withstand years of use and changing seasonal conditions. Available in ice blue and black color options, this gasket system supports both technical performance and aesthetic harmony.

The TPV gasket structure maintains its flexibility over long-term use and contributes to air, water, sound, and thermal sealing performance.

Thermal Insulated and Hygienic Corner Systems

TRIPLE GLAZING LINE 91 offers thermal insulated and hygienic corner solutions for healthier and more durable applications. The solid insulated box profile and angled corner adapter help reduce condensation and support protection against mould and fungal growth.

This structure provides an important advantage in humid regions, high-use areas, and projects requiring advanced insulation performance.

Wide Opening and Application Options

TRIPLE GLAZING LINE 91 can be used with different opening types such as single opening, tilt and turn opening, double sash opening, secure opening, remote-controlled opening, and ventilation systems.

The system is also suitable for pivot windows, parallel sliding systems, and folding door applications. Additional options such as insect screens, blinds, monoblock roller shutters, external roller shutters, and shutters can further increase functionality and comfort.

First-Class Surface Quality

Thanks to moulds produced with Ultra Fine Tuning technology, TRIPLE GLAZING LINE 91 profiles offer homogeneous, scratch-free, smooth, extra-glossy, first-class surfaces.

The premium surface quality gives the profile an elegant appearance while ensuring a clean, high-quality, and prestigious user experience for many years.

Project-Specific Wind Load and Strength Solutions

TRIPLE GLAZING LINE 91 can be evaluated according to the project location, building height, façade position, and expected wind load. Based on these factors, alternative solutions with different strength levels and ease-of-use options can be recommended.

This approach makes it possible to design safer, stronger, more energy-efficient, and user-friendly PVC window profile systems for every type of project.
