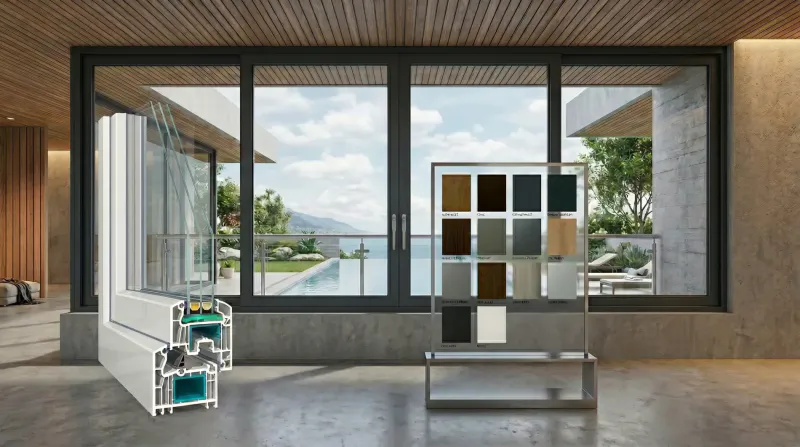

PVC Window Profile TRIPLE GLAZING WINDOW PROFILE 81

‹ ›

TRIPLE GLAZING WINDOW PROFILE 81

High-Performance PVC Window and Door Profile System

TRIPLE GLAZING WINDOW PROFILE 81 is a high-performance PVC window profile system developed for low-energy homes, energy-saving renovation projects, high-rise buildings, business centers, balcony applications, and interior partition systems.

With its advanced profile geometry, triple gasket sealing structure, high insulation values, and strong static performance, this triple glazing window profile combines energy efficiency, safety, comfort, and aesthetics in modern building projects.

Technical Profile Features

TRIPLE GLAZING WINDOW PROFILE 81 is designed with a 3 mm wall thickness and complies with A-Class profile standards.

The system features 81 mm frame profiles and 91 mm sash profiles. This advanced construction depth provides high thermal insulation, strong acoustic performance, and excellent static stability in modern PVC window and door profiles.

The frame and mullion profiles have a 6-chamber structure, while the sash and door sash profiles have a 7-chamber profile geometry. This intelligent design makes the system a reliable multi-chamber PVC window profile for projects requiring durability, insulation, and long-term performance.

Superior Thermal Insulation and Energy Saving

TRIPLE GLAZING WINDOW PROFILE 81 contributes significantly to energy savings thanks to its low thermal transmittance values.

Profile Thermal Transmittance Value: Uf = 1.2 W/m²K

Window Thermal Transmittance Value: Uw = 1.0 W/m²K

With 44 mm triple insulating glass featuring a Ug value of 0.6 W/m²K, the system provides high energy efficiency. Supported by the IFT Rosenheim test report, TRIPLE GLAZING WINDOW PROFILE 81 is an ideal energy efficient PVC window profile for low-energy buildings and renovation projects with high insulation requirements.

It helps reduce the transfer of cold air in winter and hot air in summer. It also provides strong protection against dust, humidity, external weather conditions, and traffic noise, creating more comfortable and efficient living spaces.

Triple Gasket System for High Sealing Performance

TRIPLE GLAZING WINDOW PROFILE 81 provides strong resistance against air, water, wind, and driving rain with its triple gasket PVC window system structure. This advanced sealing concept improves energy savings while increasing indoor comfort.

It delivers reliable performance especially in high-rise buildings and façades exposed to strong wind loads. The grid profile used in the system gives additional strength to window façades in tower-type buildings and provides stronger protection against wind and driving rain.

High Acoustic Insulation

TRIPLE GLAZING WINDOW PROFILE 81 can provide enhanced sound insulation of up to 44 dB with different acoustic glass applications. This feature makes it an excellent sound insulation PVC window profile for city centers, busy traffic areas, hotels, office buildings, and residential projects exposed to external noise.

Thanks to its advanced profile structure, triple gasket system, and suitable glass combinations, outside noise is reduced and quieter, more peaceful indoor spaces are achieved.

Wide Glazing and Panel Application Options

TRIPLE GLAZING WINDOW PROFILE 81 offers glazing bead options suitable for 24 mm, 32 mm, and 44 mm glass, cladding, and panel applications.

Its structure is ideal for triple glazing PVC windows and helps reduce heat loss through large glass surfaces. This provides an important energy-efficiency advantage in modern buildings with large window openings.

Strong Static Performance

TRIPLE GLAZING WINDOW PROFILE 81 is a reinforced PVC window profile system supported with steel reinforcements featuring a high moment of inertia. This structure provides high strength in large-size window and door applications.

Reinforcement steel is used in the sash chamber where the hinges are fixed in order to safely carry the sash load. This application increases sash stability, supports long-term operational safety, and strengthens the static performance of the system.

Increased Security Performance

TRIPLE GLAZING WINDOW PROFILE 81 is designed to be compatible with hardware applications that provide increased burglary resistance. When used together with strong profile construction, reinforced steel supports, and advanced locking systems, the security level is significantly improved.

This makes the system a suitable A-Class PVC window profile for residential buildings, business centers, ground-floor applications, and projects with high security requirements.

Wide Range of Lamination and Color Options

TRIPLE GLAZING WINDOW PROFILE 81 offers a wide range of lamination options suitable for different aesthetic expectations on interior and exterior surfaces. Natural wood-effect patterns and aluminium-effect surface alternatives allow easy integration into various architectural designs.

The new color range includes decorative options such as Anthracite Grey, Azul, Antique Oak, Rustic Oak, Golden Oak, Dark Oak, and Walnut.

In addition, aluminium-effect surface options such as Aluminum Brush Effect, Silber Brush Effect, Quartz Platinum, and Crown Platinum support aesthetic consistency in modern building projects.

Advanced TPV Gasket System

TRIPLE GLAZING WINDOW PROFILE 81 is equipped with an advanced TPV gasket system designed to withstand years of use and changing seasonal conditions. Available in ice blue and black color options, this gasket system supports both technical performance and aesthetic harmony.

The TPV gasket structure maintains its flexibility over long-term use and contributes to air, water, sound, and thermal sealing performance.

Thermally Insulated and Hygienic Corner Systems

TRIPLE GLAZING WINDOW PROFILE 81 offers thermally insulated and hygienic corner solutions for healthier and more durable applications. The solid thermally insulated box profile and angled corner adapter help reduce condensation and prevent the growth of mould and fungal spores.

This structure provides an important advantage in humid regions, high-use areas, and projects with high insulation requirements.

Wide Opening and Application Options

TRIPLE GLAZING WINDOW PROFILE 81 adapts to different usage needs with single opening, tilt and turn opening, double sash opening, safety opening, remote-controlled opening, and ventilation options.

It can also be used with pivot, parallel sliding, and folding door applications. The functionality of the system can be further increased with insect screens, blinds, monoblock roller shutters, externally mounted roller shutters, and shutter applications.

First-Class Surface Quality

Thanks to moulds produced with Ultra Fine Tuning technology, TRIPLE GLAZING WINDOW PROFILE 81 profiles are manufactured with homogeneous, scratch-free, smooth, and extra-glossy first-class surface quality.

This premium surface structure gives the profiles an elegant and prestigious appearance while providing a clean, high-quality, and comfortable user experience for many years.

Project-Specific Wind Load and Strength Solutions

TRIPLE GLAZING WINDOW PROFILE 81 can be evaluated according to the location of your project, building height, façade position, and expected wind load. Based on these factors, alternative solutions with different strength levels and usage requirements can be offered.

This approach makes it possible to create safer, more durable, energy-efficient, and user-friendly high insulation PVC window systems for every project.
